Hybrid Lasers
Compact Nd:YAG laser systems with the superior beam quality of diode pumping and high peak performance achieved by flash lamp amplification.
| Repetition Rate | Pulse Energy (@ 1064 nm) |
Pulse Energy (@ 532 nm) |
Pulse Energy (@ 355 nm) |
Pulse Energy (@ 266 nm) |
Stability RMS (@ 1064 nm) |
|
|---|---|---|---|---|---|---|
| Hybrid I - 50 | 50 Hz | > 250 mJ | > 125 mJ | > 70 mJ | > 40 mJ | < 1.0 % |
| Hybrid I - 100 | 100 Hz | > 250 mJ | > 125 mJ | > 70 mJ | > 40 mJ | < 1.5 % |
| Repetition Rate | Pulse Energy (@ 1064 nm) |
Pulse Energy (@ 532 nm) |
Pulse Energy (@ 355 nm) |
Pulse Energy (@ 266 nm) |
Stability RMS (@ 1064 nm) |
|
|---|---|---|---|---|---|---|
| Hybrid II - 30 | 30 Hz | > 450 mJ | > 250 mJ | > 125 mJ | > 70 mJ | < 1.0 % |
| Hybrid II - 50 | 50 Hz | > 450 mJ | > 250 mJ | > 125 mJ | > 70 mJ | < 1.0 % |
| Hybrid II - 100 | 100 Hz | > 400 mJ | > 180 mJ | > 100 mJ | > 50 mJ | < 1.5 % |
| Repetition Rate | Pulse Energy (@ 1064 nm) |
Pulse Energy (@ 532 nm) |
Pulse Energy (@ 355 nm) |
Pulse Energy (@266 nm) |
Stability RMS (@ 1064 nm) |
|
|---|---|---|---|---|---|---|
| Hybrid III - 50 | 50 Hz | > 800 mJ | > 350 mJ | > 250 mJ | > 100 mJ | < 2.0 % |
| Hybrid III - 100 | 100 Hz | > 800 mJ | > 300 mJ | > 200 mJ | > 100 mJ | < 2.5 % |

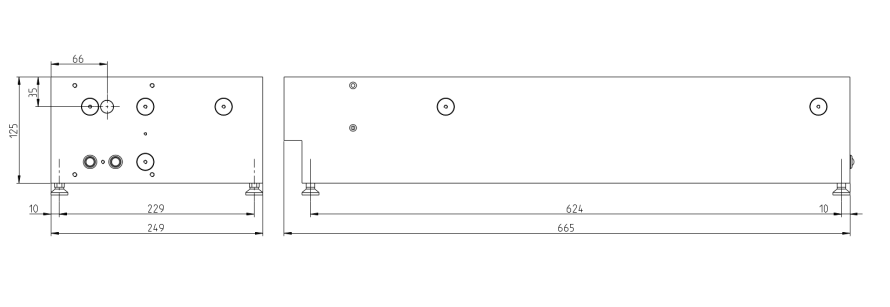

- Compact laser head and power supply with small footprint
- Robust and stable resonator structure
- Quick and easy change of flashlamps
- Maintenance-free pumping chamber with ceramic reflector
- Excellent beam quality and pointing stability
- Long flashlamp lifetime
- Double pulse option available
- System can be injection seeded (SLM-option)
- energy monitor (display in software available)
- injection seeding
- beam profile optimization
- attenuator (manual or motorized)
- multi-pulse option: pulse separation times as low as 100ns
- fifth harmonic available
- various cooling options available depending on repetition rate
- customization possible
