picolo and picolo MOPA

Information
The patented design of the picolo series enables sub-nanosecond pulse width generation and high repetition rates. Up to 320 kW peak power and great beam quality allow superior results in many non-linear optics and micro-machining applications. Picosecond timing Jitter, integrated Harmonic options down to 266nm and optional fibre delivery solutions make the picolo a versatile tool for different spectroscopy and imaging applications.
picolo datasheet (PDF)
picolo MOPA datasheet (PDF)
application note: selective laser structuring of organic solar cells (PDF)
  1. picolo
  2. picolo MOPA
  3. Features
  4. Drawings
  5. Options
  max. Rep. Rate max. Avg. Power (1064 nm) max. Energy (1064 nm) max. Energy (532 nm) max. Energy (355 nm) Power Stability RMS (1064 nm) Pulse Width (1064 nm)
picolo 1 5 kHz 400 mW 80 µJ 35 µJ 22 µJ < 3 % < 800 ps
picolo 25 25 kHz 750 mW 35 µJ 15 µJ 10 µJ < 3 % < 1000 ps
picolo 50 50 kHz 1200 mW 25 µJ 10 µJ 6 µJ < 3 % < 1100 ps
picolo 100 100 kHz 1400 mW 15 µJ 6 µJ 3 µJ < 3 % < 2000 ps
picolo-10 YAG 10 kHz 750 mW 150 µJ 60 µJ 35 µJ < 5 % < 3000 ps
  max.
Rep. Rate		 max. Avg. Power (1064 nm) max. Energy (1064 nm) max. Energy (532 nm) max. Energy (355 nm) Power Stability RMS (1064 nm) Pulse Width (1064 nm)
picolo-1 MOPA 5 kHz 800 mW 160 µJ 60 µJ 30 µJ < 5 % < 800 ps
picolo-25 MOPA 25 kHz 1700mW 70 µJ 30 µJ 20 µJ < 5 % < 1000 ps
picolo-50 MOPA 50 kHz 2500 mW 50 µJ 20 µJ 12 µJ < 5 % < 1100 ps
picolo-100
MOPA 		100 kHz 3000 mW 25 µJ 12 µJ 6 µJ < 5 % < 2000 ps
picolo MOPA YAG 10 kHz 1750 mW 300 µJ 120 µJ 70 µJ < 7 % < 3000 ps
  • Compact laser head and power supply with small footprint
  • High efficiency
  • No external cooling required
  • TEM00 pulses down to 500 ps
  • Repetition rates up to 100 kHz
  • External triggering / synchronisation to < 200 ps jitter
  • Oscillators to 2 W and > 125 kW peak
  • Oscillator / amplifier to > 4 W and > 300 kW peak
  • IR, Visible / UV (harmonic) and fibre optic delivery options
  • Laboratory or customised OEM units
drawing picolo (PDF) (PDF)

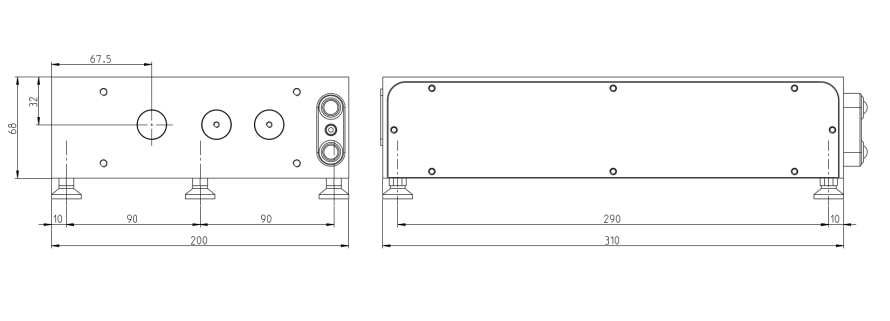

drawing MOPA (PDF) (PDF)
  • Integrated Harmonic Modules for frequency conversion down to 213nm
  • Motorized Wavelength Switch
  • Fiber Delivery
  • Attenuator with Software integration
  • OEM design housings and Power Supply
